3T Exploro LTD FlatMount Rahmenset   Rahmen/Frame: 3T Exploro LTD; Unidirectional pre-preg carbon, High-modulus/high-strength EXTRALIGHT performance blend layup Gabel/Fork: 3T Fango LTD Steuersatz/Headset: Sealed cartridge 1.125" - 1.5" Sattelstütze/Seatpost: 3T Carbon     Lieferumfang / delivery content: Rahmen / Frame Gabel / fork Steuersatz / headset Sattelstütze / seatpost integrierte Sattelklemme / seatpost internal clamp Steckachsen vorn+hinten / front and rear thru axles Umwerferaufnahme / front derailleur hanger Schaltauge/rear derailleur hanger

3T EXPLORO LTD Rahmenset PostMount   Lieferumfang: LTD Rahmen LTD Gabel Sattelstütze Steuersatz Steckachsen Gewicht Rahmen ca. 950g   Auf Wunsch bauen wir das Rad auch komplett für Sie auf - Bei Interesse kontaktieren Sie uns einfach kurz!   Technische Details: FORK/GABEL: 3T Luteus II LTD 15mm thru axle (included) BB / Tretlagerstandard: BB386EVO Chainring Fit:  Max inner ring: 36T Max outer ring: 50T Max single ring (offset ring): 46T Max single ring (flat ring): 50TThe above applies to round rings, oval rings come in various shapes and need to be measured individually.   Headset / Steuersatz: Integrated tapered IS42/28.6 | IS52/40 Seatpost / Sattelstütze: 3T Charlie Sqaero Rear Axle / hintere Achse: 142x12mm thru axle (Syntace X-12) Rear Brake Standard: Post mount for 160mm disc Cable Routing: internal via interchangeable FlipTop covers for 1x10/11, 2x10/11, Di2, etap

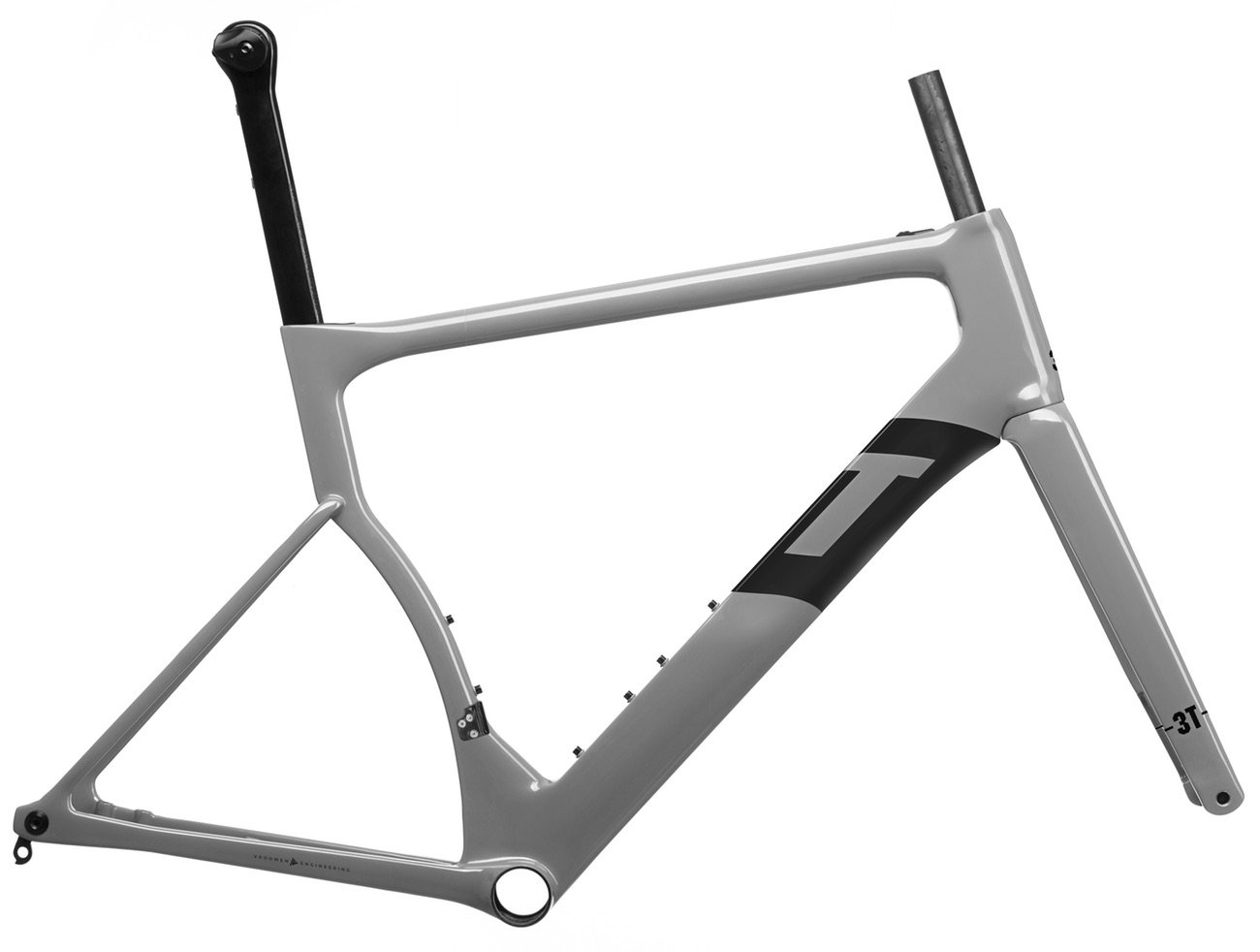

3T STRADA Due Team Rahmenset --> Passt für alle Schaltgruppen - auch mit Umwerfer vorn! 2x11 und 1x11 --> nur für elektronische Gruppen wenn ein Umwerfer montiert wird - bei 1x11 Gruppen auch mechanisch!   Frame material Unidirectional carbon Frame weight (+/-3%) 1005g (Medium, frame-only) Fork weight (+/-3%) 395g Fork Fundi TEAM flat mount disk brake for 12mm thru axle BB BB386EVO Headset 1 1/4" - 1 1/8" Integrated tapered IS42/28.6 | 47/33 Seatpost 3T Charlie Sqaero Strada (CHARLIE EXPLORO is NOT compatible with the STRADA frame) Thru-axles 3T custom length Syntace X-12: 142x12mm rear, 100x12mm front Front brake Flatmount integrated for 140 & 160mm disc Rear brake Flatmount for 140 or 160mm disc Cable routing Internal via interchangeable FlipTop covers for 2x Di2, eTap and EPS Tire clearance Effective width: 30mm, Wheel radius: 344mm. More info Finish Gray with black logos Included in box Frame, fork, headset, seatpost, seatpost internal clamp, front and rear thru axle, 2 rear derailleur hangers, noise-cancelling foam sleeve to cover shifter cables and brake hose.

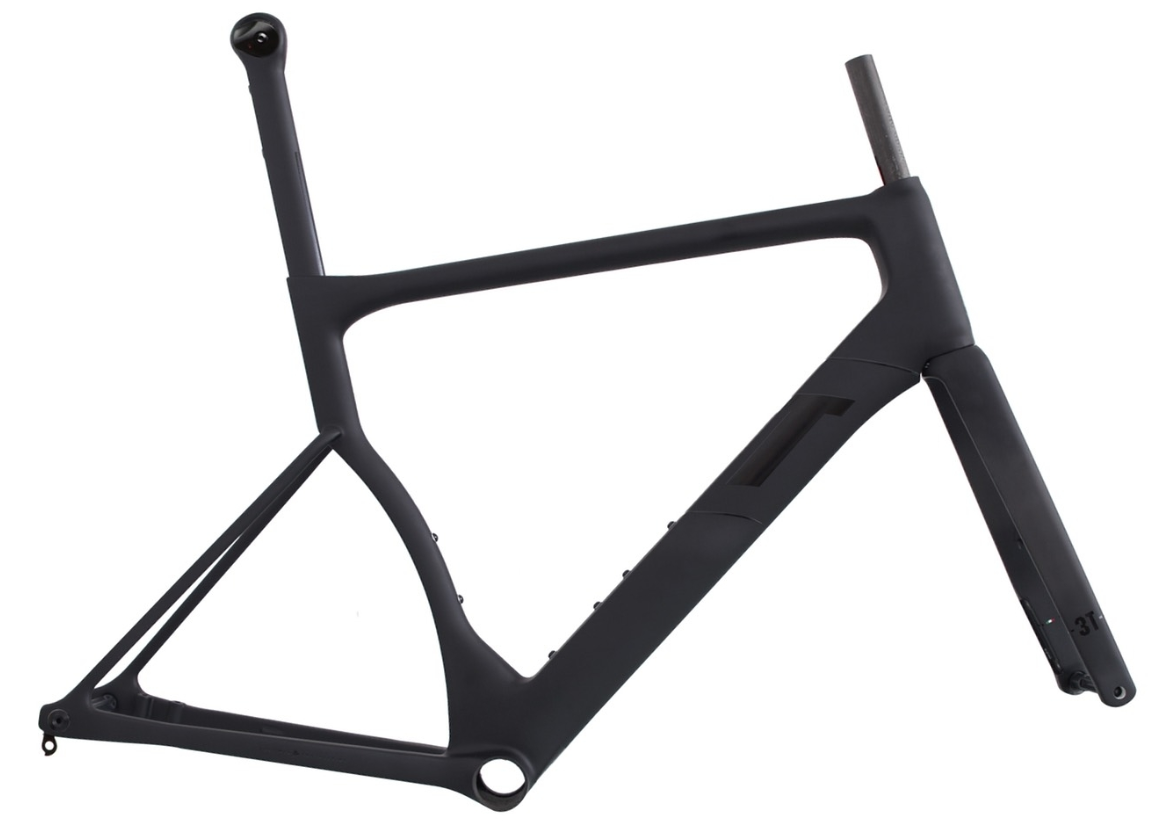

3T STRADA Due Team Rahmenset, Farbe tesm stealth --> Passt für alle Schaltgruppen - auch mit Umwerfer vorn! 2x und 1x --> nur für elektronische Gruppen wenn ein Umwerfer montiert wird --> bei 1x11/12 Gruppen auch mechanische Schaltung möglich!   Frame material Unidirectional carbon Frame weight (+/-3%) 1005g (Medium, frame-only) Fork weight (+/-3%) 395g Fork Fundi TEAM flat mount disk brake for 12mm thru axle BB BB386EVO Headset 1 1/4" - 1 1/8" Integrated tapered IS42/28.6 | 47/33 Seatpost 3T Charlie Sqaero Strada (CHARLIE EXPLORO is NOT compatible with the STRADA frame) Thru-axles 3T custom length Syntace X-12: 142x12mm rear, 100x12mm front Front brake Flatmount integrated for 140 & 160mm disc Rear brake Flatmount for 140 or 160mm disc Cable routing Internal via interchangeable FlipTop covers for 2x Di2, eTap and EPS Tire clearance Effective width: 30mm, Wheel radius: 344mm. More info Finish Stealth Included in box Frame, fork, headset, seatpost, seatpost internal clamp, front and rear thru axle, 2 rear derailleur hangers, noise-cancelling foam sleeve to cover shifter cables and brake hose.

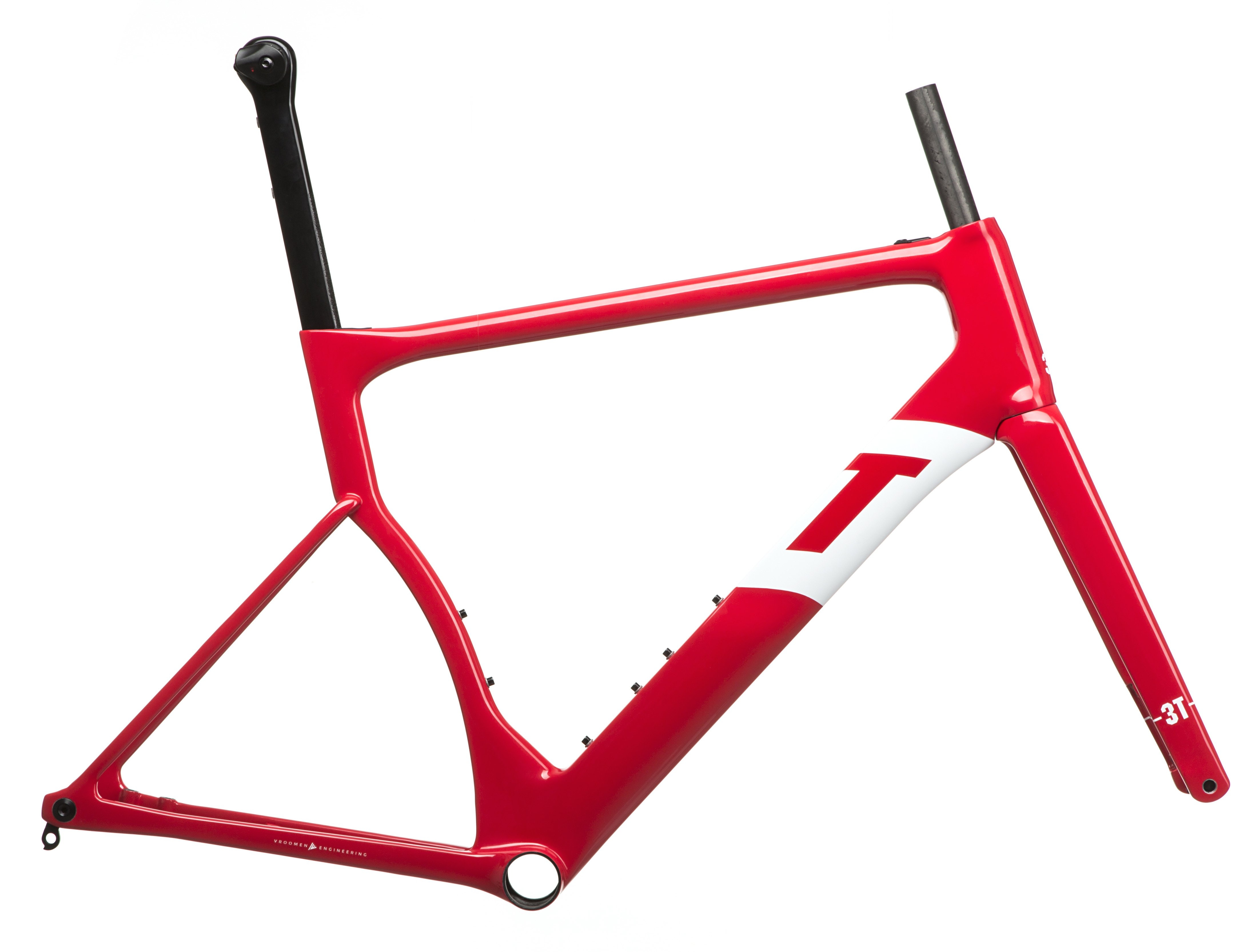

3T STRADA Team Rahmenset nur für 1x11 Schaltgruppen (kein Umwerfer vorne möglich!)   Frame material Unidirectional carbon Frame weight (+/-3%) 970g (Medium, frame-only) Fork weight (+/-3%) 395g Fork Fundi TEAM flat mount disk brake for 12mm thru axle BB BB386EVO Headset 1 1/4 - 1 1/8 Integrated tapered IS42/28.6 | 47/33 Seatpost 3T Charlie Sqaero Strada (CHARLIE EXPLORO is NOT compatible with the STRADA frame) Thru-axles 3T custom length Syntace X-12: 142x12mm rear, 100x12mm front Front brake Flatmount integrated for 140 & 160mm disc Rear brake Flatmount for 140 & 160mm disc Cable routing Internal via interchangeable FlipTop covers for 1x mechanical, Di2 Tire clearance Effective width: 30mm, Wheel radius: 344mm. More info Finish Stealth black or red with white logos. Ready-to-paint frames also available Included in box Frame, fork, headset, seatpost, seatpost internal clamp, front and rear thru axle, 2 rear derailleur hangers, noise-cancelling foam sleeve for rear derailleur housing and brake hose
